Servo Dobby Light Wire Weaving Machine for the high quality Fabric

E-SHED NC LIGHT WIRE WEAVING MACHINE

Features and Application

The machine adopts PLC programmable control system, through servo motor and turbine reducer control cloth take-up and warp let-off to achieve automatic mesh tension adjustment, so that the mesh precision is high, Which can be more accurate weaving 80-600 square mesh with the standard wire diameter and also weave up to 2600 Dutch mesh; The independent servo motor drives each piece of heddle frame to freely set the heddle frame sequence, the height and closing time to achieve smooth wire tension, and the diversification of braid patterns; The direct drive AC servo weft insertion can adjust the rapier return time and the length and time of the second pulling at will. The limit setting of the rapier belt not only effectively protects the rapier belt and head but also improves the safety factor of the rapier belt operation. The absolute encoder is used to prevent accidents and defects such as abnormal power failure, brake instability, and data loss resulting in the clamping of the rapier belt, making the operation more stable.

This machine is mainly used for the weaving of precision metal steel of special screen printing grade, which can meet the technical requirements required for screen printing applications in the electronics and optoelectronics industry market



Technical Parameter

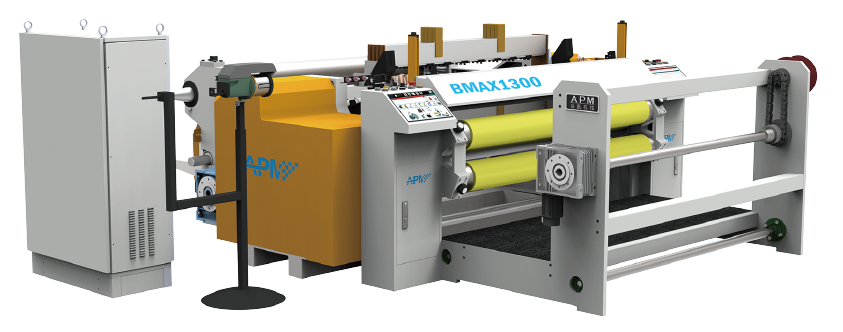

 Machine Type : BMAX
 Weaving Width :1300mm,1600mm,2000-2500mm Heddle Frame :2 or 4 or 5 or 6
 Warp / Weft Wire Range : Blow 0.30mm
 Weaving Speed : Square Mesh 40-600( Mesh ), Dutch Mesh 2600( Mesh )
 Shedding Mechanism : Aluminum heddle frame ,1.5KW AC Servo per frame
 Driver Way : Electromagnetic Brake Motor Driver , Vari - able frequency Speed Regulation
 Cloth Take - up System : Servo motor drive ,3Pu coating beam unlimited cloth mechanism , digital display braid length
 Weft Insertion :2.3KW high performance AC servo motor direct drive , The guild wheel drive the carbon fiber rapier belt to do reciprocating weft insertion motion
 Beating Mechanism : The crankshaft is a 65mm diame - ter ,45(55) steel monolithic forging , and the slay (55 square steel ) is made of carbon structural steel after heat treatment
 Warp let - off System : Servo motor drive , wire electron - ic tension feedback control , double rear beam , negative swinging rear beam stabilizing mechanism
 Control System : New weaving machine control system Weaving Speed :60-120 times

Auxiliary Machine





Warping Amachine

Transport Carriage

Warp Spool Creel







Standard Accessories

Sword Belt	Carver	Cut on the side	Mouth opener
Comprehensive	Buckles	Impactor	Ladder knife
Machete	Edge knife, cutting weft plate	Wire clamp	Clamp spring
Small single-sided porcelain eye	Bilateral porcelain eyes	Porcelain rings	Clip
Clamp core	Oil jugs	Hexagon Wrench





应用模板



编制方式和规格

简单描述

123456789

123456



应用领域

简单描述

12345

12345















• M-10(Standard stainless steel wire mesh)
• M-10 is the standard stainless steel wire mesh. It is produced with strict quality control.
• This type mesh is widely used in various kinds of mature screen printing, such as printed circuit board, membrane switch, solar battery, ceramic package, capacitor, etc.
• Its reliable quality and reusable printing has been widely recognized in the market.
• M-13(Strengthened stainless steel wire mesh )
• M-13 is the Strengthened stainless steel wire mesh. This type mesh is woven with the stainless steel wire which is 30% stronger than the standard stainless steel wire.
• The extra tensile strength of M-13 enhances the mesh tension and optimizes the printing parameters. Thereby M-13 improves the printing size precision and has a longer using life.
• M-30(Super strengthened stainless steel wire mesh)
• The elongation of M-30 is very low while its opening range is wide.
• This type mesh is woven with the super stainless steel wire which is 3 times as strong as the standard stainless steel wire. So M-30 can maximum reduce the screen interference during the image printing as well as make sure excellent ink penetration rate.M-30 applies to challenge the high viscosity ink printing, such as solar battery, MLCC, LTCC etc.
• W-40(Tungsten wire mesh,new generation)
• W-40 is new generation wire mesh. This type mesh is woven with tungsten filament whose physical stability and printing repeatability is higher than the strengthened stainless steel wire above mentioned. The chart in the up part of next page show the comparison of tensile strength.
•
• HDM(Heavy deposit wire mesh)
• HDM is dedicated to special screen printing which need the deposition of the heavy sink.
• The magnified pictures below show the unique structure of HDM.It is very different from the standard wire mesh.
