Semi automatic crimped wire mesh weaving machine
APM-CM-S101
The APM-CM-S101 is semi-auto.This machine is mainly for 2-6mm diameter wire weaving.The weft insertion by hand.
Quantity

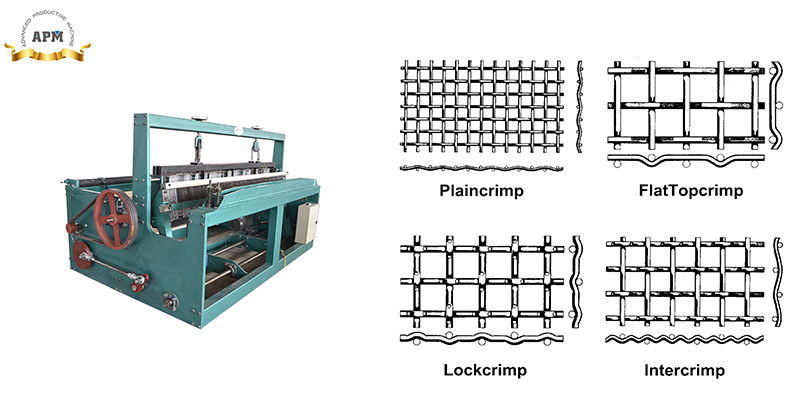

Semi-automatic crimped wire mesh weaving machine APM-CM-S101
Our semi automatic crimped wire mesh weaving machine is designed to meet the demands of modern industrial production. With its easy-to-use interface and advanced capabilities, it enables users to produce high-quality wire mesh products quickly and efficiently. The machine features a rugged construction and durable components that ensure reliable operation and long service life. Designed for use in a wide range of industrial applications, it can be used to produce wire mesh products for use in construction, agriculture, mining, and other industries. Whether you are looking to increase your production capacity, improve product quality, or reduce costs, our semi automatic crimped wire mesh weaving machine can help you achieve your goals.


Machine parameter
| Type | APM-CM-S101-2000/2500 |
| Wire diameter | 1.5-6.0mm |
| Mesh | >4mm |
| Weaving width | 2000mm/2500mm |
| Voltage | 380V/220V 50Hz 3Phase |
| Power | 3.0/2.2kw |
| Weaving speed | 35-40times/min |
| Outside size | 2.2*3.6*2.0m |
| Weight | 2600kg/3100kg |
| Mark | This machine is semi-automatic crimped,warp and weft wire are introduced by hand |

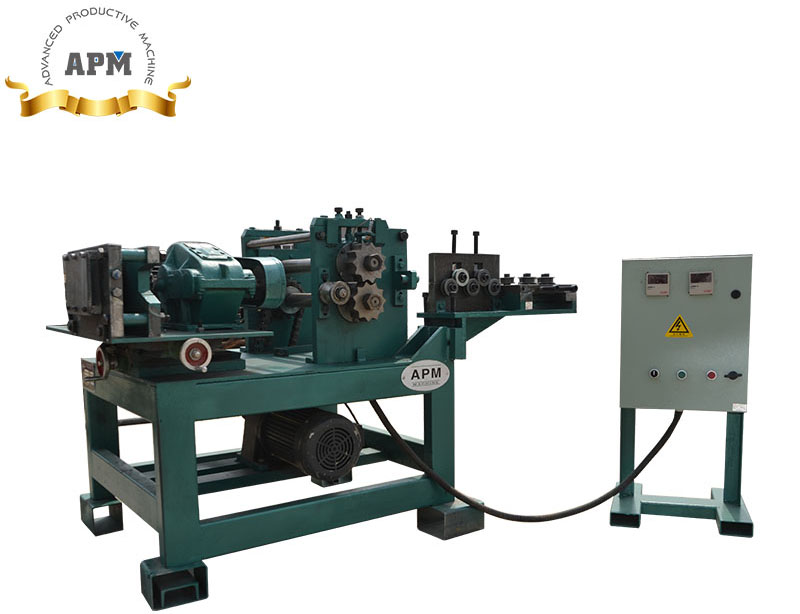

Automatic wire crimping cutting machine APM-CM-SC101
