Servo Dobby Light Wire Weaving Machine for the high quality Fabric

 NC MIDDLE HEAVY WIRE WEAVING MACHINE

 Features and Application

The machine adopts PLC programmable control system, through servo motor and turbine reducer control cloth take-up and warp let-off to achieve automatic mesh tension adjustment, so that the mesh precision is high. Which can be more accurate weaving 200 square mesh with the standard wire diameter and also weave up to 300 Dutch mesh, such as: plain weaving, Twill weave, Dutch weave and Reverse Dutch; The direct drive AC servo weft insertion can adjust the rapier return time and the length and time of the second pulling at will. The limit setting of the rapier belt not only effectively protects the rapier belt and head but also improves the safety factor of the rapier belt operation. The absolute encoder is used to prevent accidents and defects such as abnormal power failure, brake instability, and data loss resulting in the clamping of the rapier belt, making the operation more stable.

The woven metal mesh is widely used in petroleum, chemical, machinery, military, aerospace and other industrial sectors of liquid, gas filtration and solid particle screening



Technical Parameter

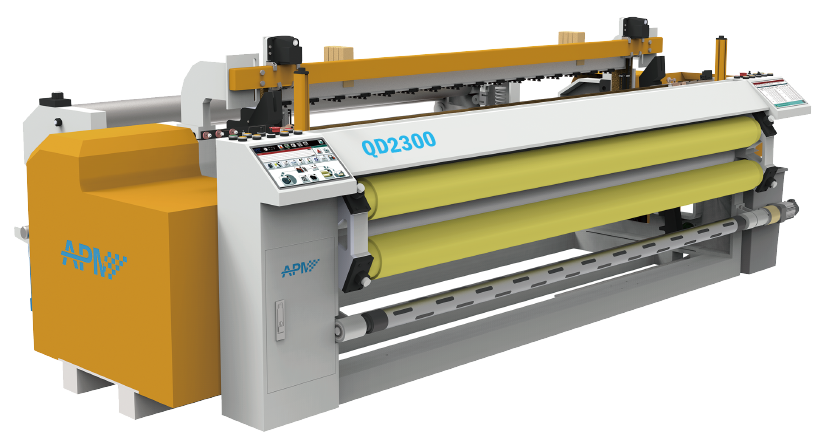

 Machine Type: QD
Weaving Width: 1000mm、1300mm，1600mm.2000mm、2500mm
Heddle Frame Number: 2 &4 or 5 Wire Diameter: <=0.35mm
Weaving Mesh Range: Square Mesh 8-200(Mesh), Dutch Mesh 300(Mesh)
Shedding Mechanism: Aluminum heddle frame,Cam Shedding
Drivey Way:Electromagnetic Brake Motor Driver,Vari- able frequency Speed Regulation
Cloth Take-up System: Servo motor drive, 3Pu coating beam unlimited cloth mechanism, digital display braid length
Weft Insertion : 2.3KW high performance AC servo motor direct drive, The guild wheel drive the carbon fiber rapier belt to do reciprocating weft insertion motion
Beating Mechanism: The crankshaft is a 75mm diame- ter, 45 (55) steel monolithic forging, and the slay (60 square steel) is made of carbon structural steel after heat treatment
Warp let-off System :Servo motor drive, wire electron- ic tension feedback control, double rear beam, negative swinging rear beam stabilizing mechanism

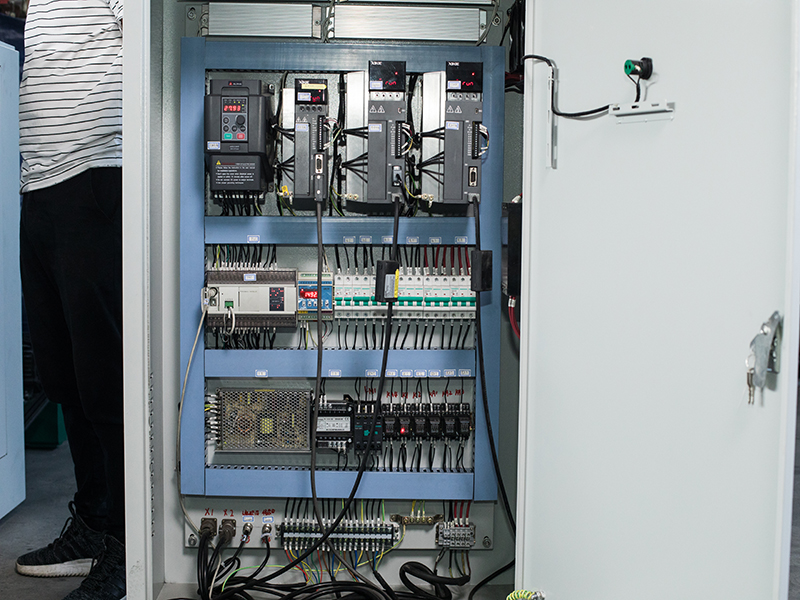

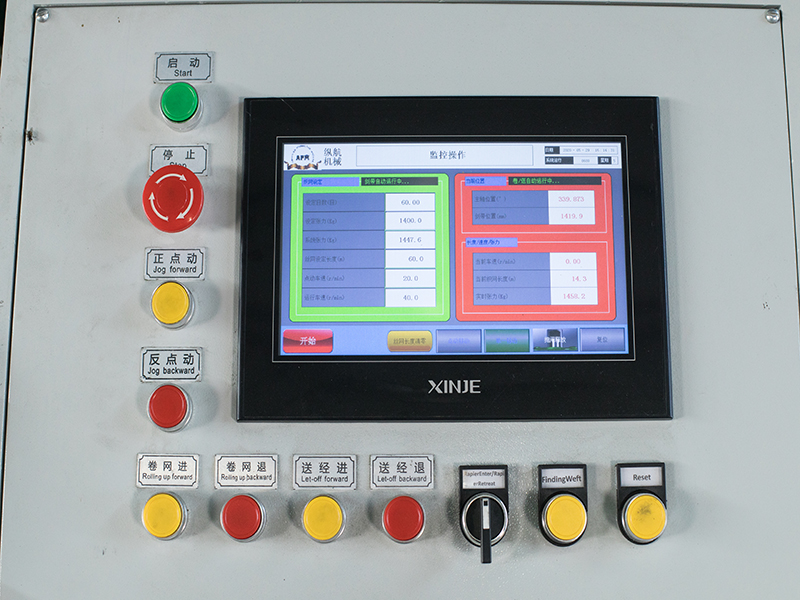

Control System: New weaving machine control system Weaving Speed:60-120 T/min

Auxiliary Machine





Warping Amachine

Transport Carriage

Warp Spool Creel







Standard Accessories

Sword Belt	Carver	Cut on the side	Mouth opener
Comprehensive	Buckles	Impactor	Ladder knife
Machete	Edge knife, cutting weft plate	Wire clamp	Clamp spring
Small single-sided porcelain eye	Bilateral porcelain eyes	Porcelain rings	Clip
Clamp core	Oil jugs	Hexagon Wrench





应用模板



编制方式和规格

简单描述

123456789

123456



应用领域

简单描述

12345

12345















After-sale service:

In normal use case, the machine warranty period is one year, and the system maintenance period: free system update for the whole life. But there are several conditions caused by equipment failure, economic loss or cost, which should be borne by the user.

1. Disassemble, modify the equipment or change the circuit without the supplier’s permission;

2. Speeding up the loom privately or exceeding the range of the woven wire diameter of the machine;

3. Abnormal wear caused by the use of unclean grease or untimely refueling;

4. Not maintaining the equipment according to the instructions or operating in violation of regulations.

5. The CNC system needs to add new functional accessories.



The New Time Of Technology Refresh： CNC Weaving

Advantage of CNC rapier

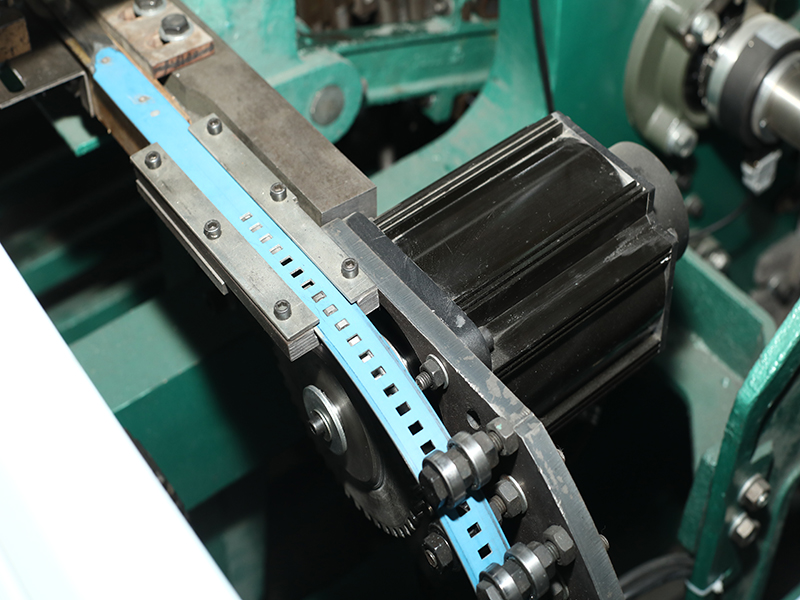

The CNC weft insertion: it can arbitrarily adjust the time of the rapier entering and pulling, and set the weft length and time at the second pulling.

The limit setting of rapier not only effectively protect the rapier, but also improves the safety factor of the rapier moving. The absolute value encoder is used to prevent abnormal power outages, brake instability, data loss causing the rapier to be stuck, and the operation is stable.

Advantage of Endless Weaving

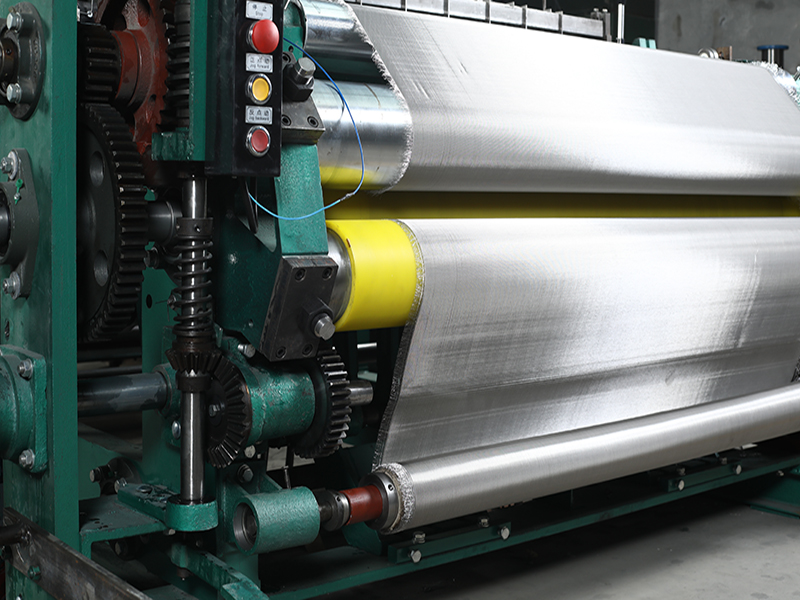

Endless weaving is through 2 PU coating rollers and 1 steel roller or 3 PU coating rollers extrusion wire cloth to achieve continuous weaving process. PU coating rollers adopt the advanced processing technology, accurate middle height, so that the overall PU coating rollers under the uniform force, easy to operate with the long service life. This structure can realize the function of endless weaving with the flat and smooth mesh surface. However, it is limited to the square mesh with the plain weave till 200 mesh. Better workable range: 40-200 mesh for the plain weave or plain dutch weave.

Advantage of CNC wrap let-off and cloth take-up

Both wrap let-off and cloth take-up devices are composed of reducer and servo motor, which not only fully finish the perfect weaving process instead of the gear machinery , but also makes it easier than that of the mechanical structure to keep the uniform aperture. The weaving process does not need adjustment to achieve 24 hours non-stop weaving.

Cloth take-up structure can adjust the time difference progress such as the continuous cloth take-up and the intermittent cloth take-up.

Warp let-off structure: Through the tension digital control the uniform wire feeding to keep the stable weaving tension.
