Q type Heavy Wire Mesh Machine

1300Q-2500Q

Features and Application
1.Strong adaptability to wire : It was suitable for imported and domestic all kinds of metal wire. Such as stainless steel wires, low carbon and high carbon wires, copper brass and phosphor bronze wires and other alloy wires etc.
2.Large adjustable range: It could weave 8-200mesh square mesh, also could weave special mesh till 300mesh,such as Plain weaving, Twill weave, Dutch weave and Reverse Dutch etc. And better than other machinery.
3.The machine adopts the technique of shuttle-less and straightaway weft insertion. Automatic warp let-off and cloth take-up. Shedders are smaller and surface of woven cloth are smooth. There is not any bright spot, bright trace and other effects on fine cloth. The machine can make high grade metal wire mesh. Comply with the national standard GB/T530-2003.
4.The whole machine has low center of gravity, good stability, low noise, less consumption and high efficiency.
5.Reasonable design, simple in structure, easy to operate, easy to adjust and repair.

Quantity

Contact Now

add to cart

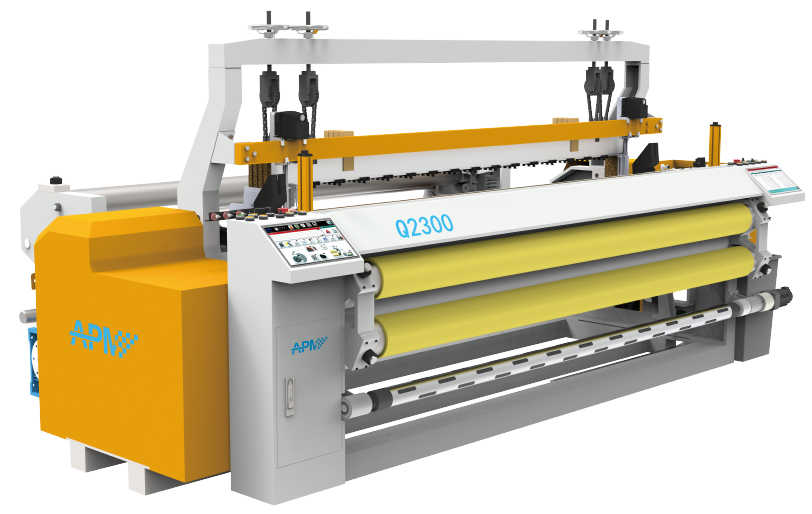

Q type Heavy Wire Mesh Machine

NC HEAVY WIRE WEAVING MACHINE

Features and Application

The machine adopts PLC programmable control system, through servo motor and turbine reducer control cloth take-up and warp let-off to achieve automatic mesh tension adjustment, so that the mesh precision is high. Which can be more accurate weaving 200 square mesh with the standard wire diameter and also weave up to 300 Dutch mesh, such as: plain weaving, Twill weave, Dutch weave and Reverse Dutch; The direct drive AC servo weft insertion can adjust the rapier return time and the length and time of the second pulling at will. The limit setting of the rapier belt not only effectively protects the rapier belt and head but also improves the safety factor of the rapier belt operation. The absolute encoder is used to prevent accidents and defects such as abnormal power failure, brake instability, and data loss resulting in the clamping of the rapier belt, making the operation more stable.

The woven metal mesh is widely used in petroleum, chemical, machinery, military, aerospace and other industrial sectors of liquid, gas filtration and solid particle screening

Technical Parameter

Machine Type: Q
Weaving Width: 1000mm、1300mm、1600mm.2000mm，2500mm
Heddle Frame Number: 2 & 4 Wire Diameter: <= 0.60mm
Weaving Mesh Range: Square Mesh 0-120(Mesh), Dutch Mesh 300(Mesh)
Shedding Mechanism: Aluminum heddle frame,Cam Shedding
Drive Way: Electromagnetic Brake Motor Driver,Vari- able frequency Speed Regulation
Cloth Take-up System: Servo motor drive, 3Pu coating beam unlimited cloth mechanism, digital display braid length
Weft Insertion : 2.3KW high performance AC servo motor direct drive, The guild wheel drive the carbon fiber rapier belt to do reciprocating weft insertion motion
Beating Mechanism: The crankshaft is a 75mm diame- ter, 45 (55) steel monolithic forging, and the slay (70 square steel) is made of carbon structural steel after heat treatment
Warp let-off System:Servo motor drive, wire electron- ic tension feedback control, double rear beam, negative swinging rear beam stabilizing mechanism
Control System: New weaving machine control system Weaving Speed:60-90 T/min

Auxiliary Machine

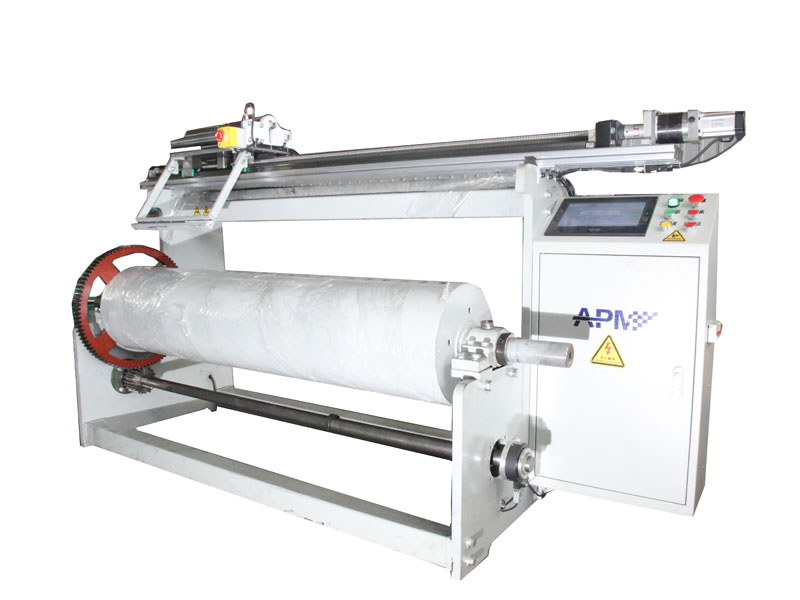

Warping Amachine

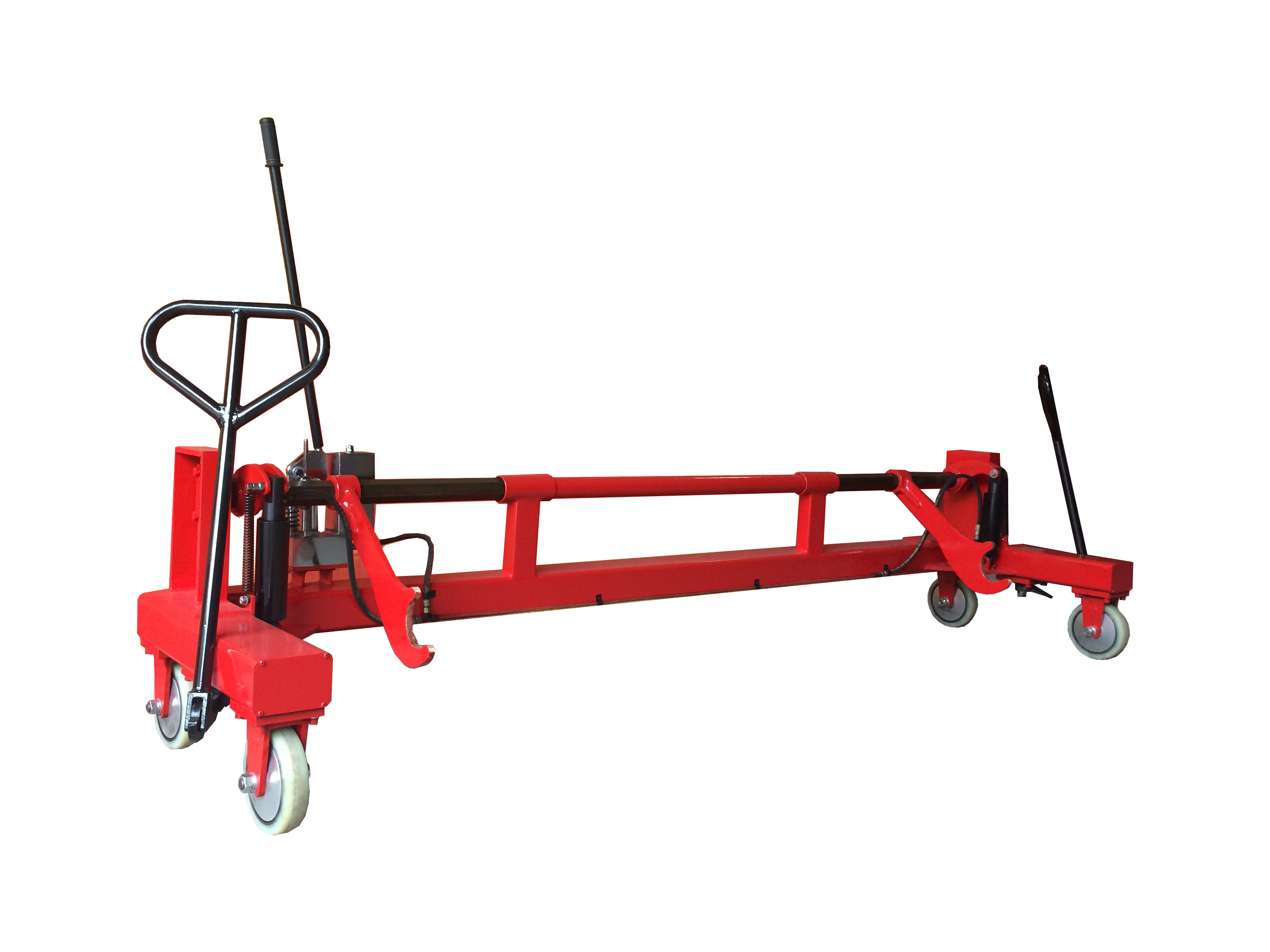

Transport Carriage

Warp Spool Creel

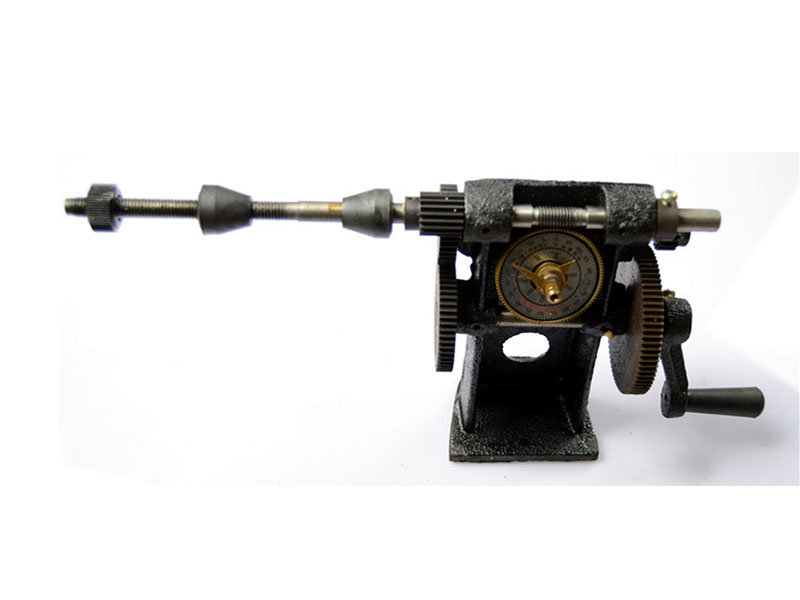

Standard Accessories

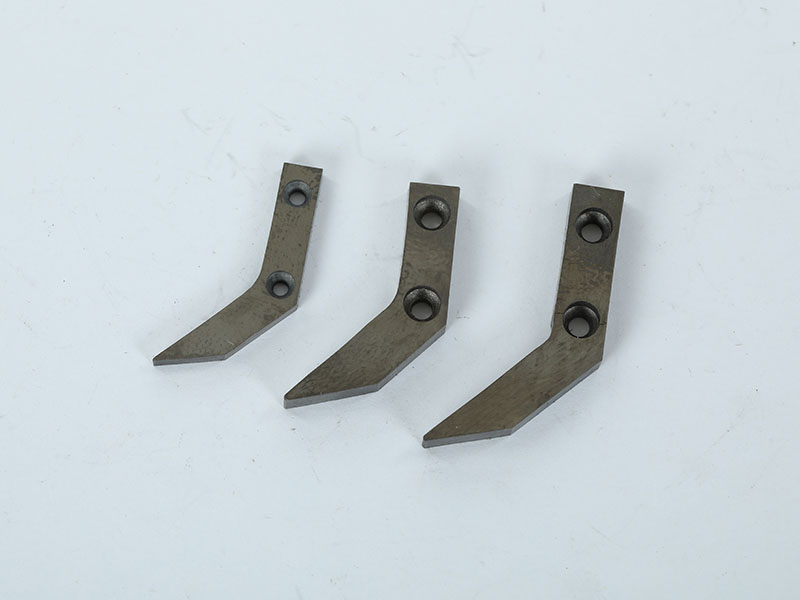

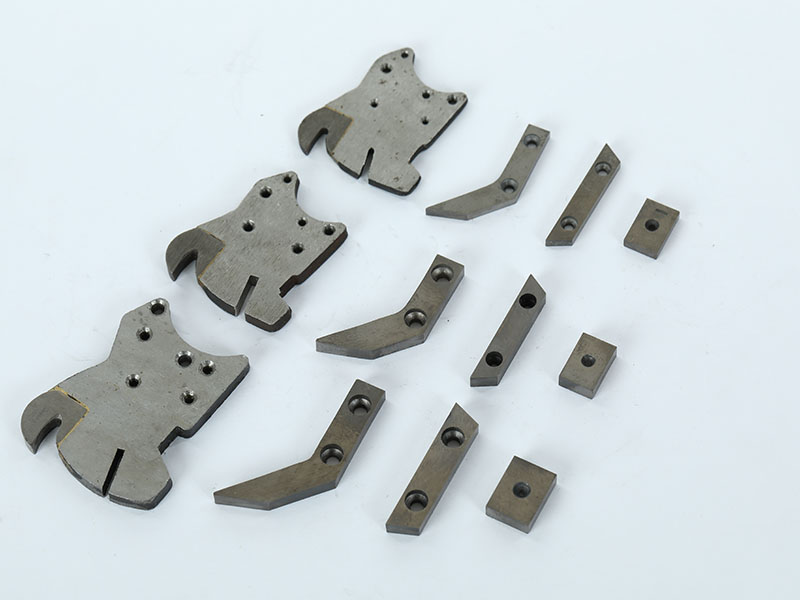

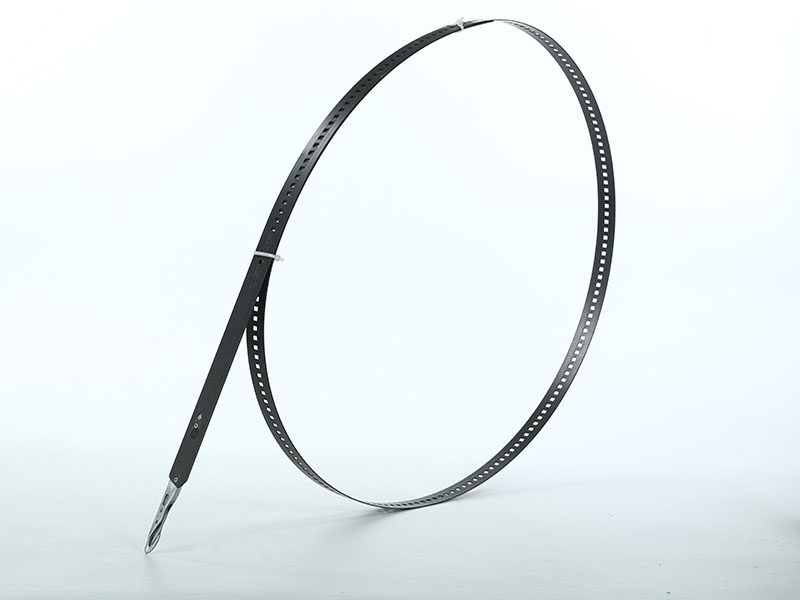

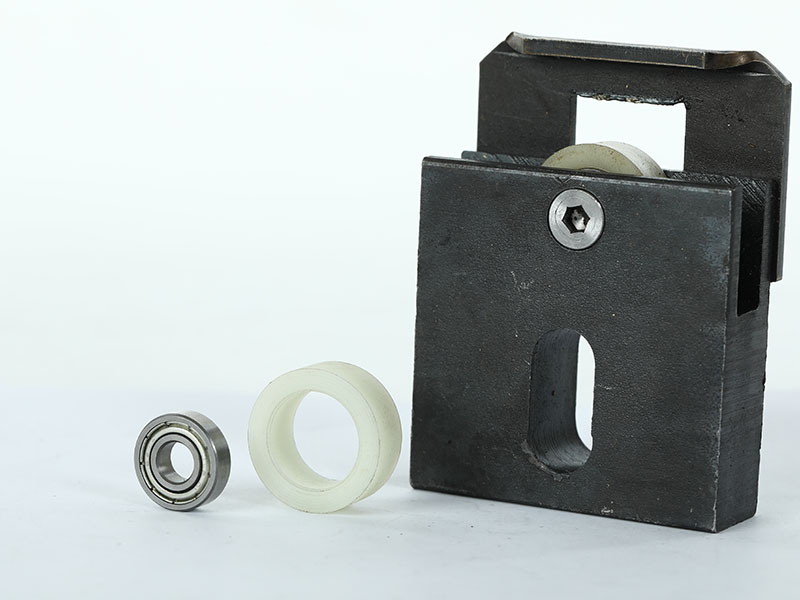

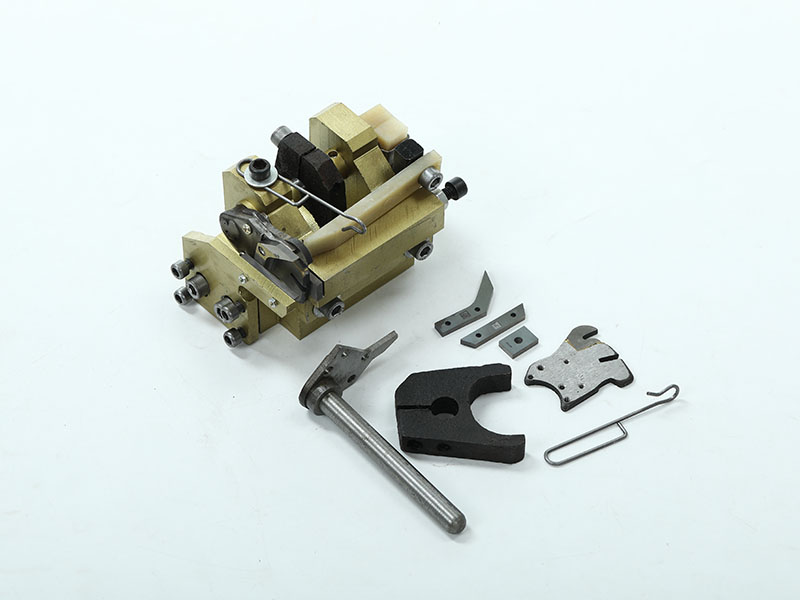

Sword Belt	Carver	Cut on the side	Mouth opener

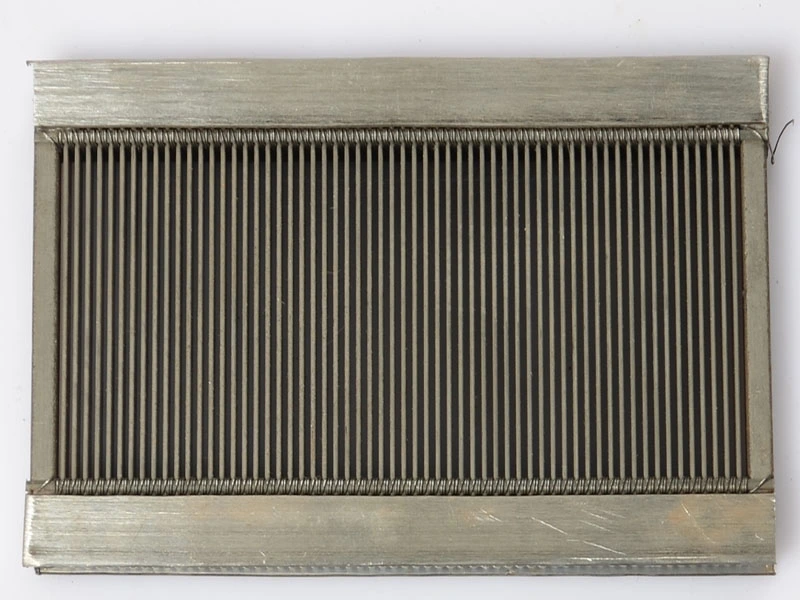

Comprehensive	Buckles	Impactor	Ladder knife

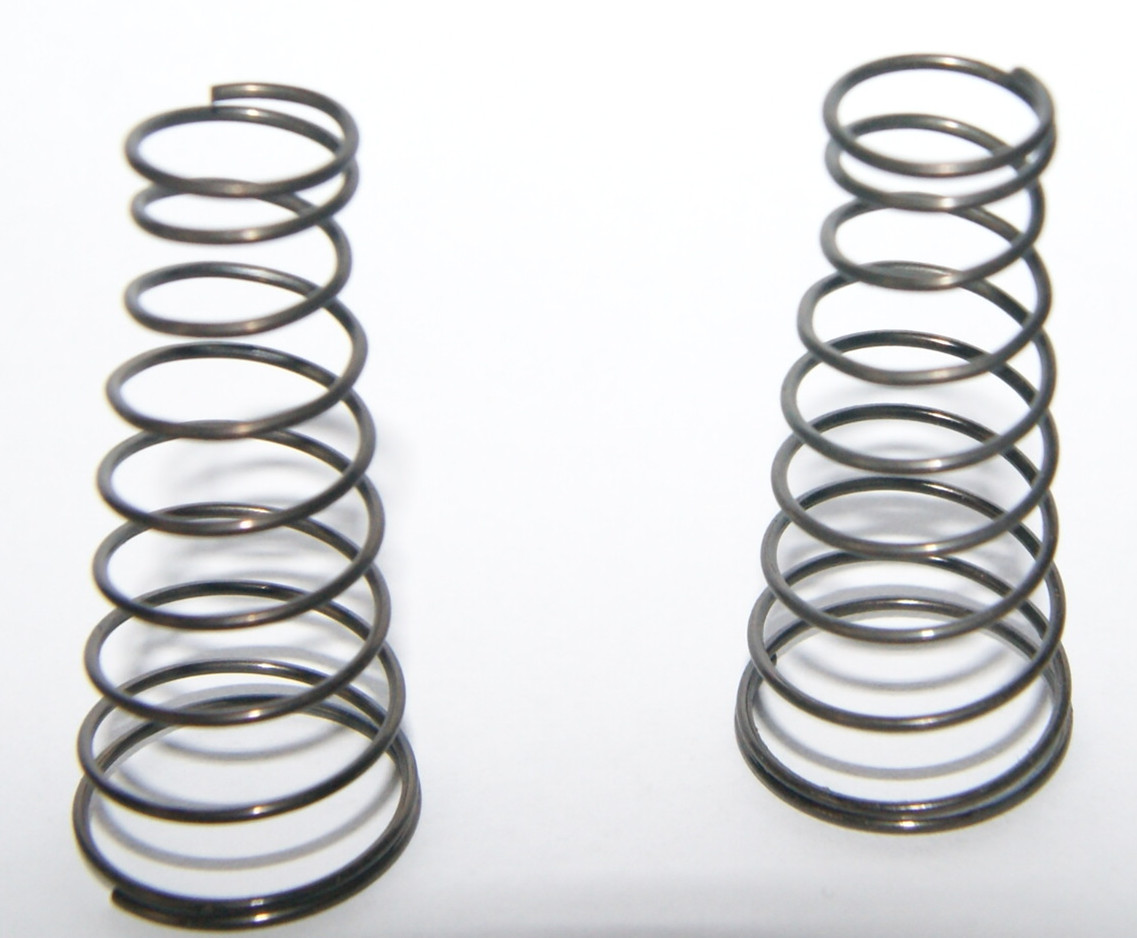

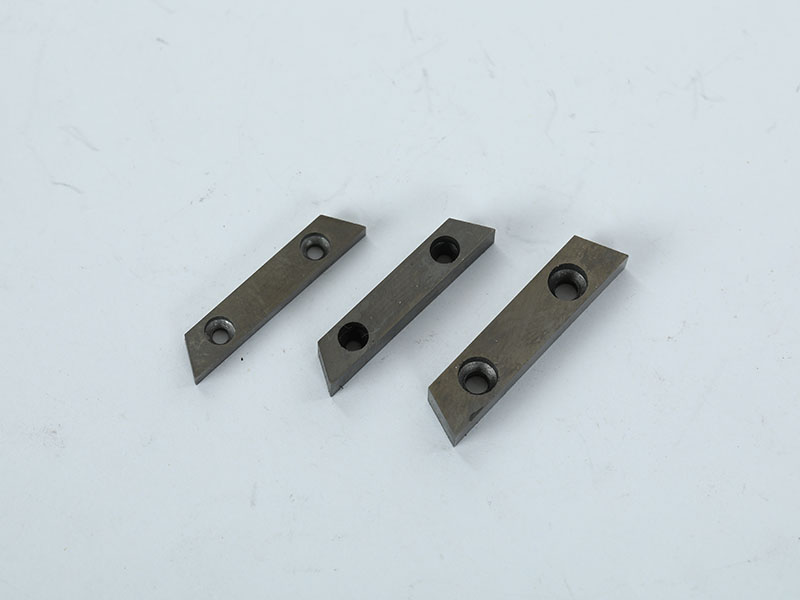

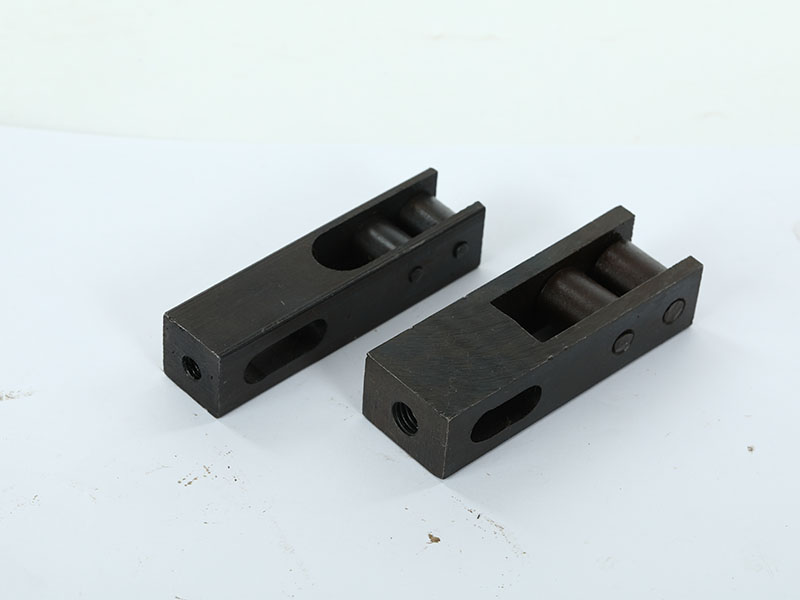

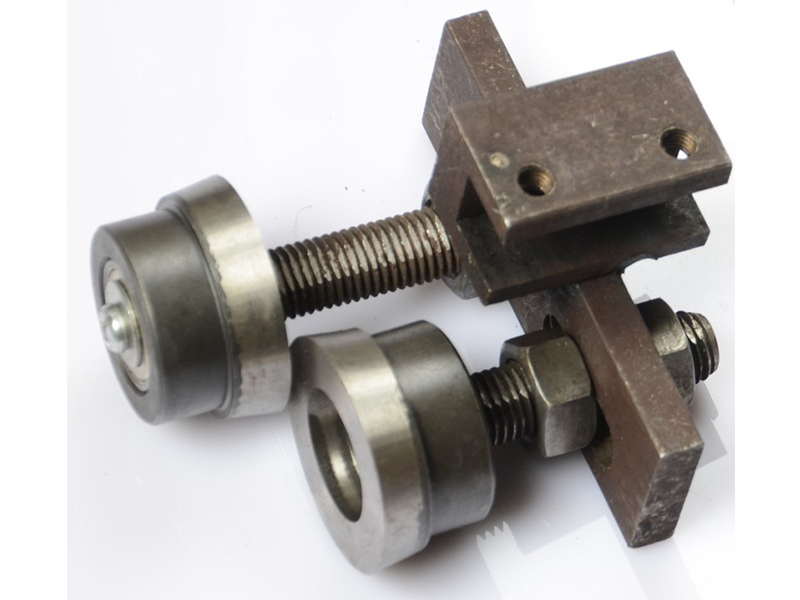

Machete	Edge knife, cutting weft plate	Wire clamp	Clamp spring

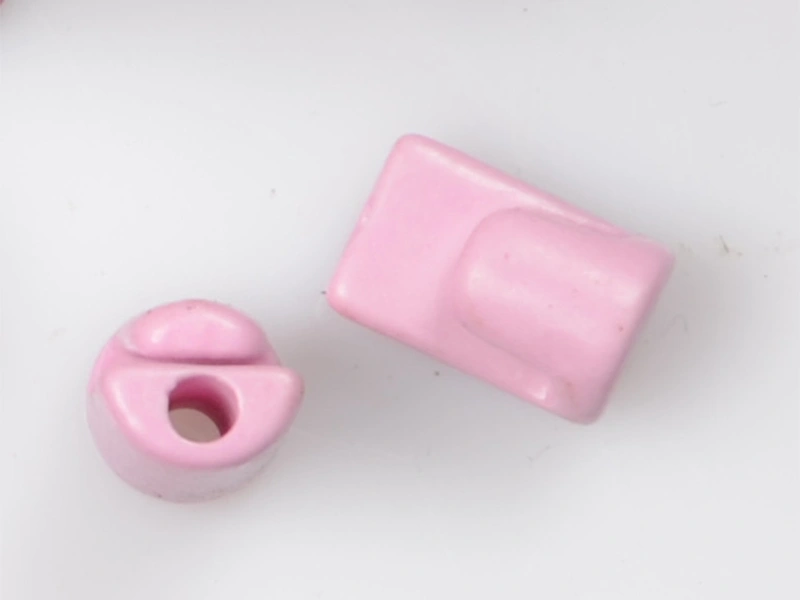

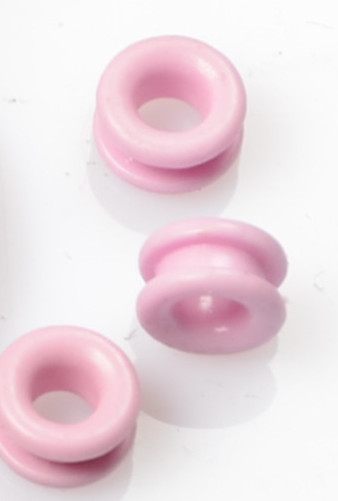

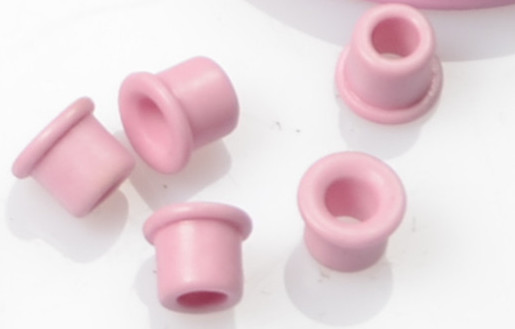

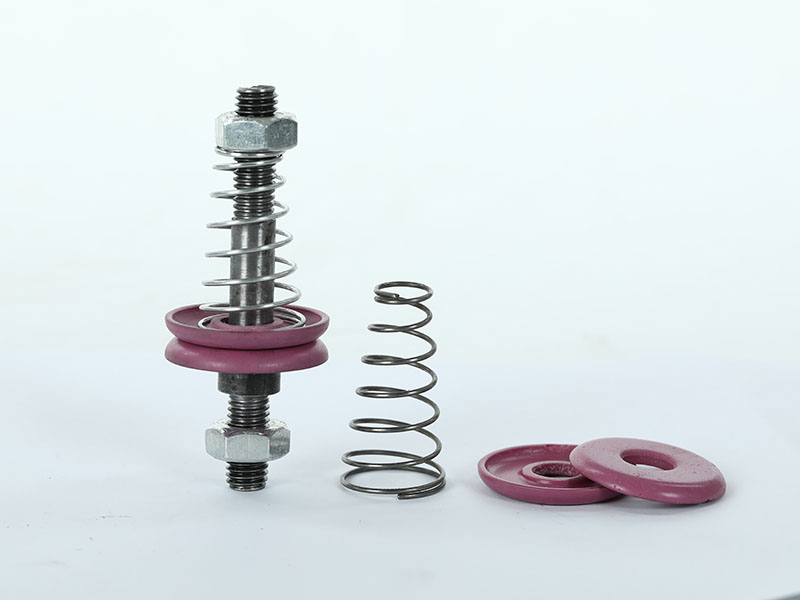

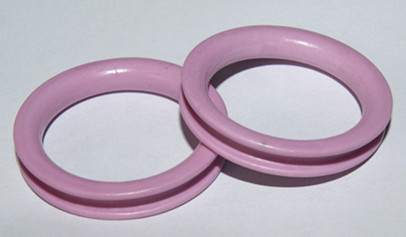

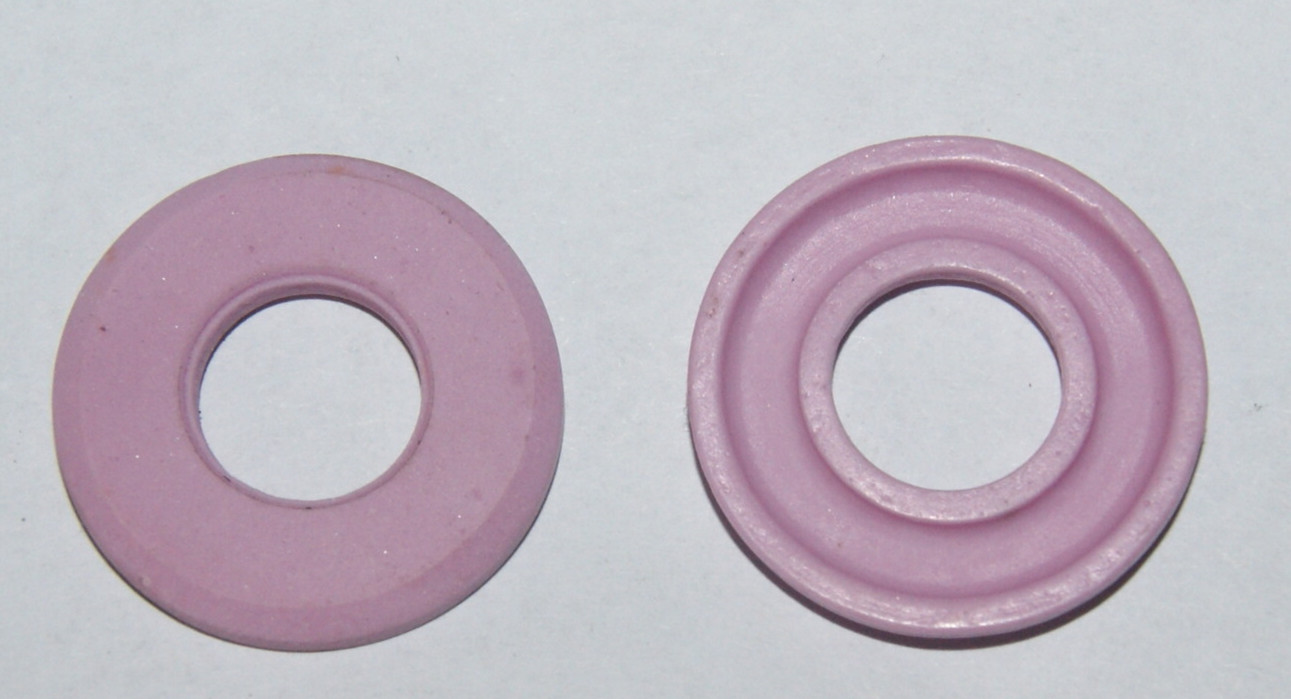

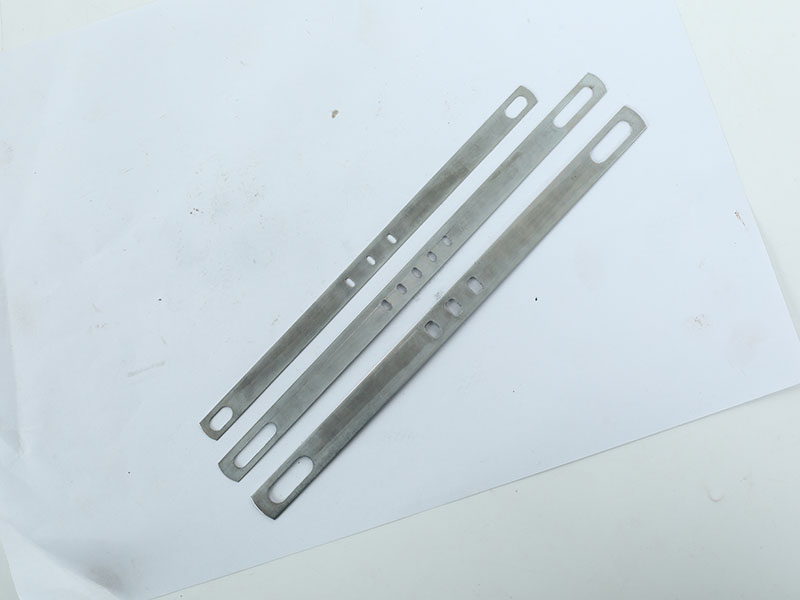

Small single-sided porcelain eye	Bilateral porcelain eyes	Porcelain rings	Clip

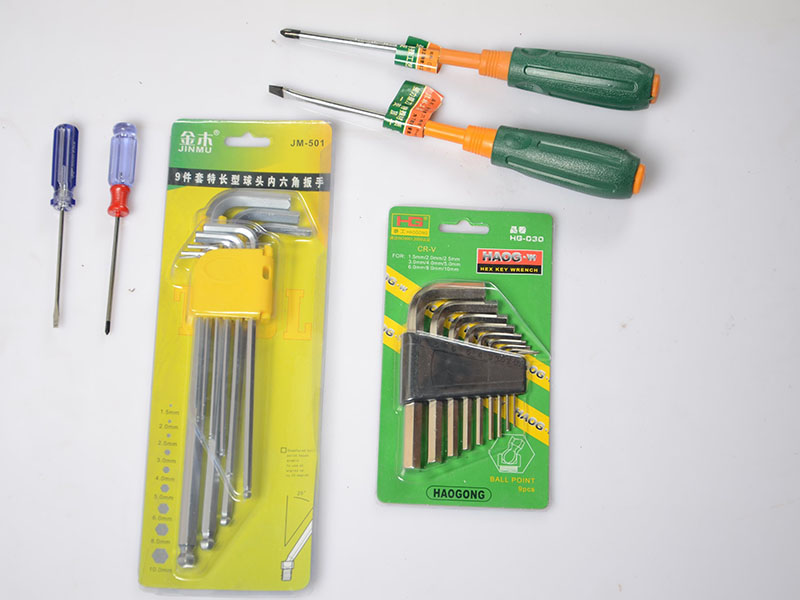

Clamp core	Oil jugs	Hexagon Wrench
