Hydraulic crimped wire mesh assembly machine
Hydraulic crimped wire mesh assembly machine
Hydraulic crimped wire mesh assembly machine
Hydraulic screen mesh assembly machine

Hydraulic crimped wire mesh weaving machine

APM-CM-H101
A powerful machine for weaving crimped wire mesh with weft wire in, ideal for mining vibration screen mesh weaving. Highly precise and compatible with 5mm-12mm diameter wire.
Quantity
Contact Now
add to cart

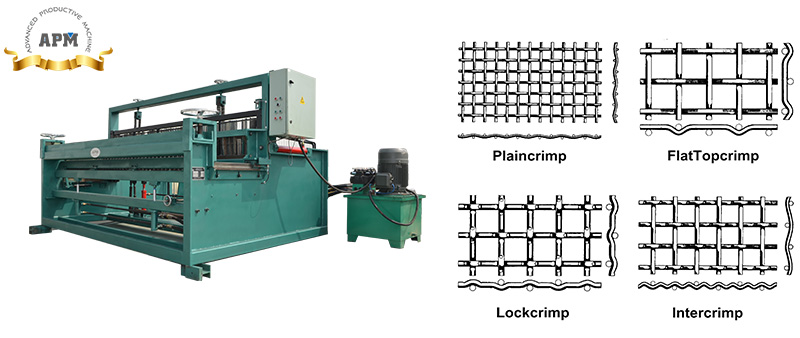

Hydraulic semi-automatic crimped wire mesh weaving machine APM-CM-H101

Our semi-automatic crimped wire mesh assembly machine is built to produce crimped wire mesh with unprecedented speed and precision. It is specifically designed for 5mm-12mm diameter wire and is semi-automatic, requiring the weft wire to be manually fed in while the machine does the rest. The powerful machine is highly precise, guaranteeing perfect crimps every time. It is ideal for weaving mining vibration screen mesh and can efficiently solve common issues faced by users. Order yours today and experience efficient and effortless crimped wire mesh assembly.

Machine parameter

APM-CM-H101 weaving machine parameter

Type

APM-CM-H101

Wire diameter

5.0-12.0mm

Open size

9mm

Speed

15-20times/min

Width

2000mm/2500mm

Outside

2200x2500x1800

Weight

3300kgs/3800kgs

Motor power

5.5KW/2.2kw

Voltage

50Hz380V 3Phase

Mark

This machine is hydraulic crimped, warp and weft wire are introduced by hand.

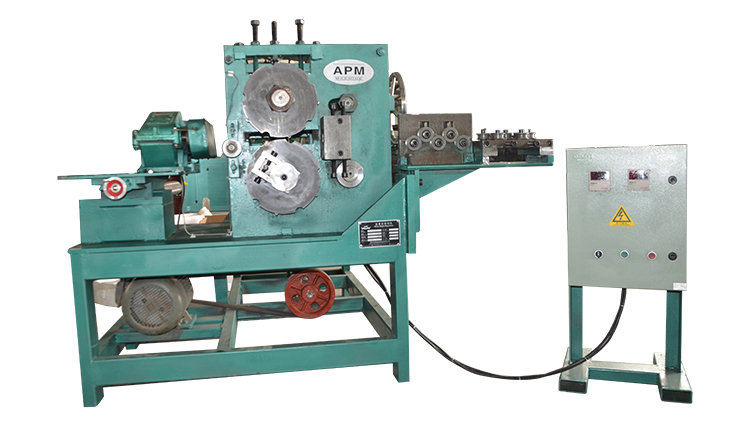

Automatic wire crimping cutting machine APM-CM-HC101

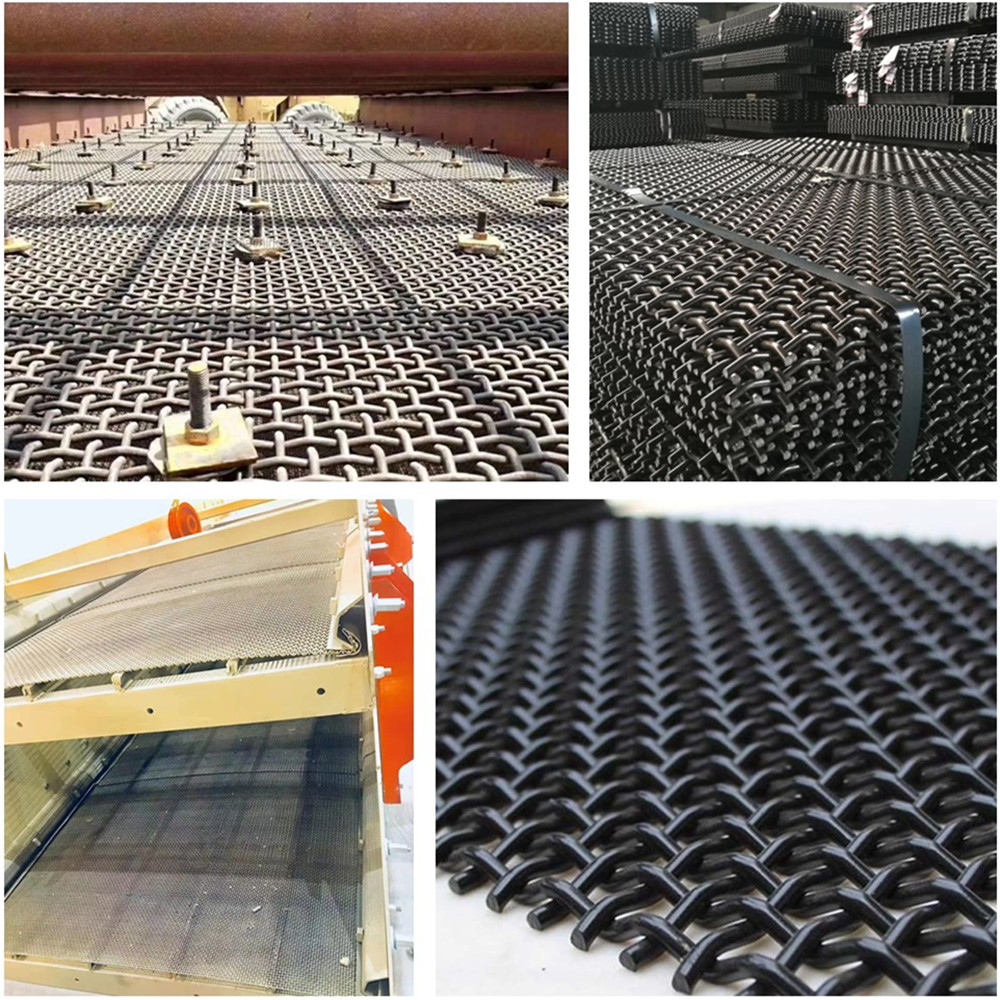

Product & Application
