High-Speed Automatic crimped wire mesh machine for Large Diameter Metal Wire, Industrial Grade with AC Servo-Driven System
APM-AM-F102
Full automatic crimped wire mesh machine with the PLC Rapier. The APM-AM-F102 crimped wire mesh weaving machine is for wire diameter from 0.7mm to 2.0mm pulling weft wire by one servo motor with reducers.
This looms can only weave square & rectangular meshes because the slay is moved by a steady stroke crankshaft at the speed 50-60times/minute by frequency control. Thus the front screen clamp beam’s position must be adjusted by hand as per mesh/wire ratios.
This looms can only weave square & rectangular meshes because the slay is moved by a steady stroke crankshaft at the speed 50-60times/minute by frequency control. Thus the front screen clamp beam’s position must be adjusted by hand as per mesh/wire ratios.
Quantity

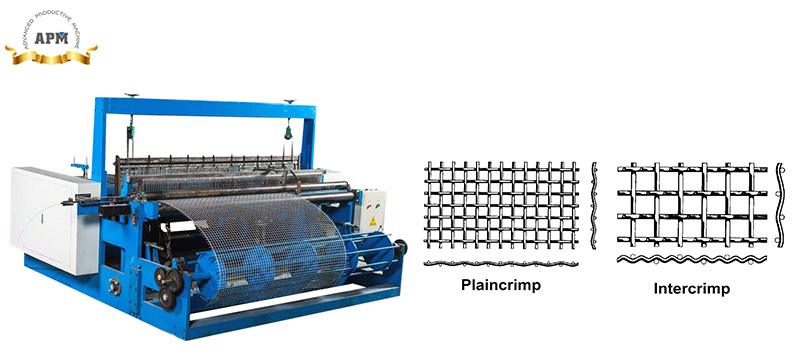

Full-automatic wire mesh weaving machine APM-AM-FC102
This full automatic crimped wire mesh weaving machine is designed to take the hassle out of producing crimped wire mesh 1-3mm diameter. The machine automatically feeds the wire, crimps it, and neatly weaves it together. The control panel is easy to navigate, and operators can adjust settings such as weaving speed,mesh cutting off.With a compact design and robust rapier gripper, this machine is built to withstand middle-heavy use and produce high-quality wire mesh. From fence manufacture to building construction to agricultural use, our crimped wire mesh weaving machine is perfect for any application. Save time, increase productivity, and produce reliable results with this incredible machine.

Machine Paremeter
Type | APM-AM-F102 |
|---|---|
Wire materials | Stainless steel wire and Middle carbon steel wire |
Wire diameter | 1.0-3.0mm |
Mesh size | 3.0x3.0mm - 25*25mm |
Weaving width | 1300mm/1600mm/2000mm |
Voltage | 380V,4.0kw |
Weaving speed | 30-60times/min |
Outside size (WxLxH) | 4.0mtrx2.3mtrx1.8mtr |
Weight | 3200kg/1300mm width 3700kgs /1600mm width 4000kgs/2000mm width |

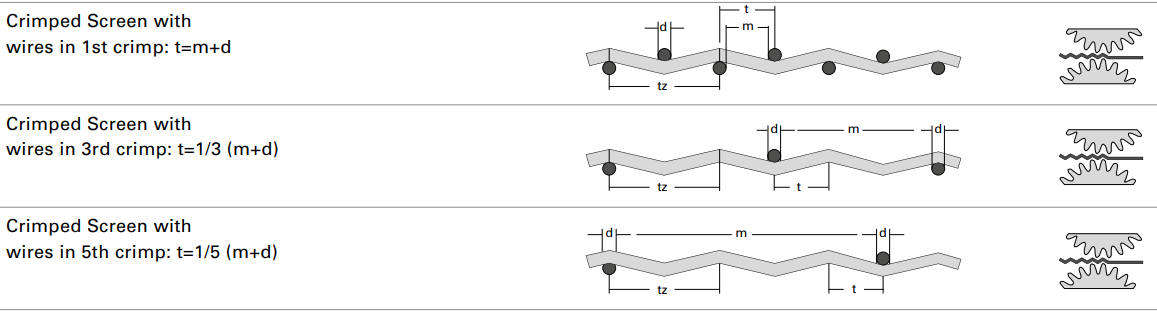

| Weave type | Plain,intermediate |
Weave type

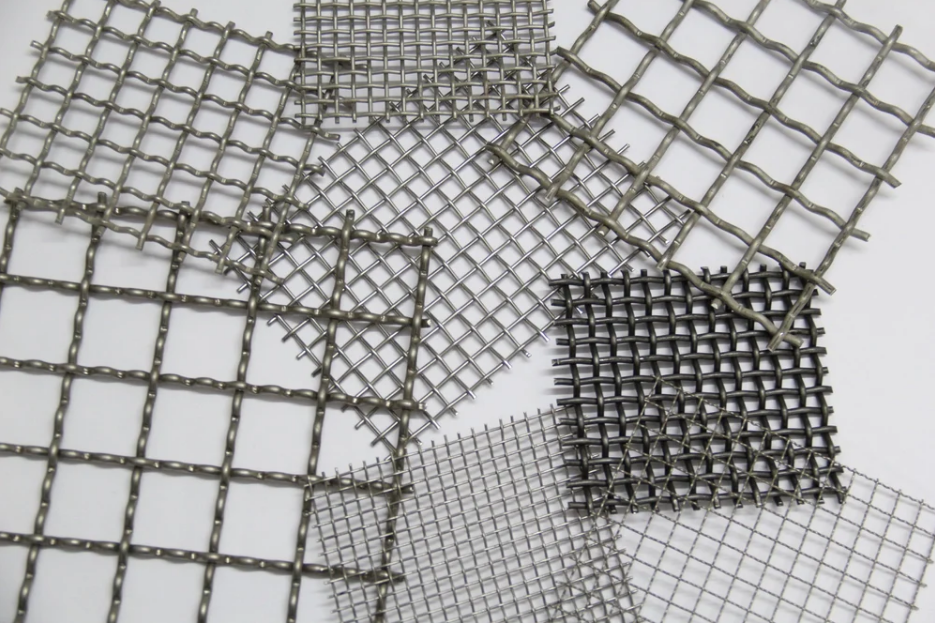

Product Sample

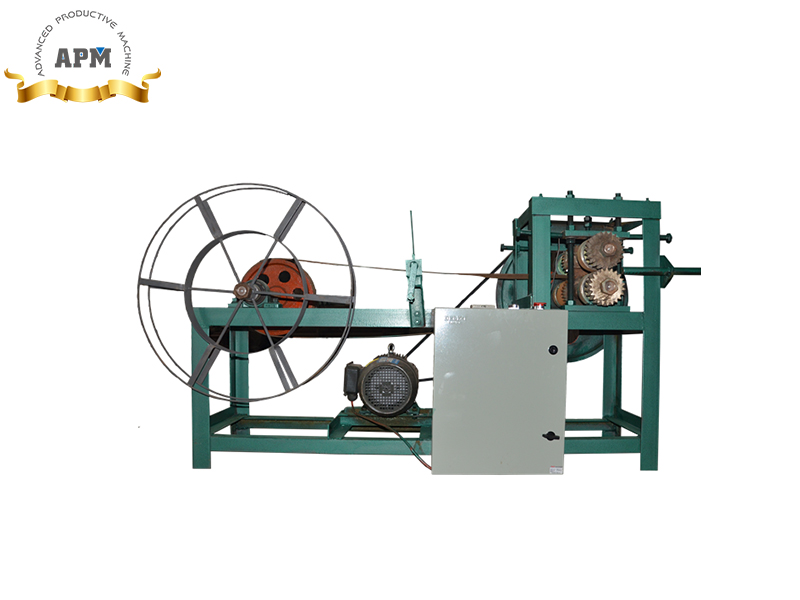

Auxiliary machine APM-AM-FC101 automatic wire crimping and rolling.
